Trephine Punch (Vacuum)

Trephine Punch (Vacuum)

The Nanoedge Trephine Punch (Vacuum) is designed to take out a circular corneal button of predetermined diameter from the recipient cornea in a corneal transplant procedure. Cutting action of the Trephine Punch is assisted by a manual Vacuum mechanism, which holds the corneal firmly in place while the cutting is being performed.

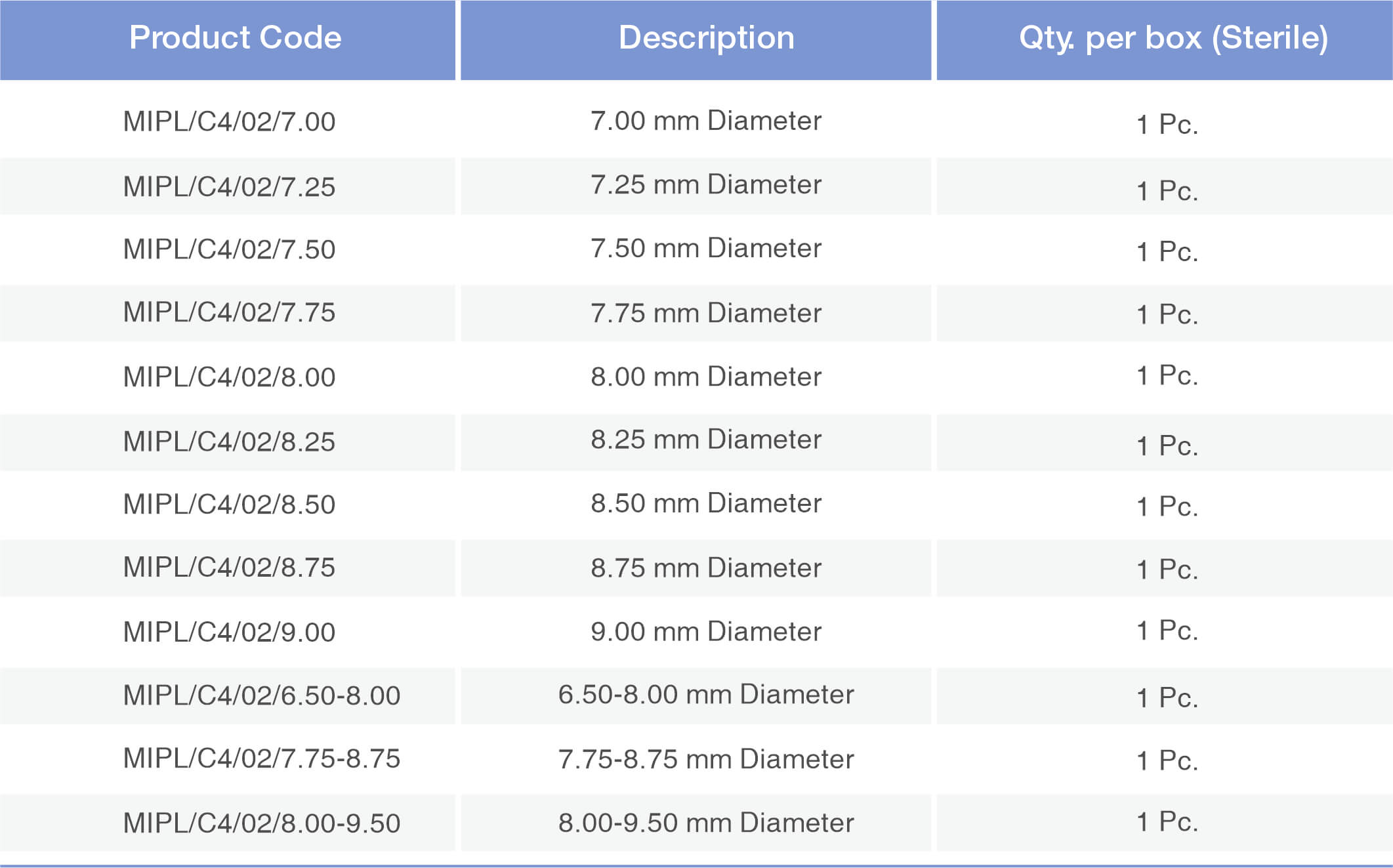

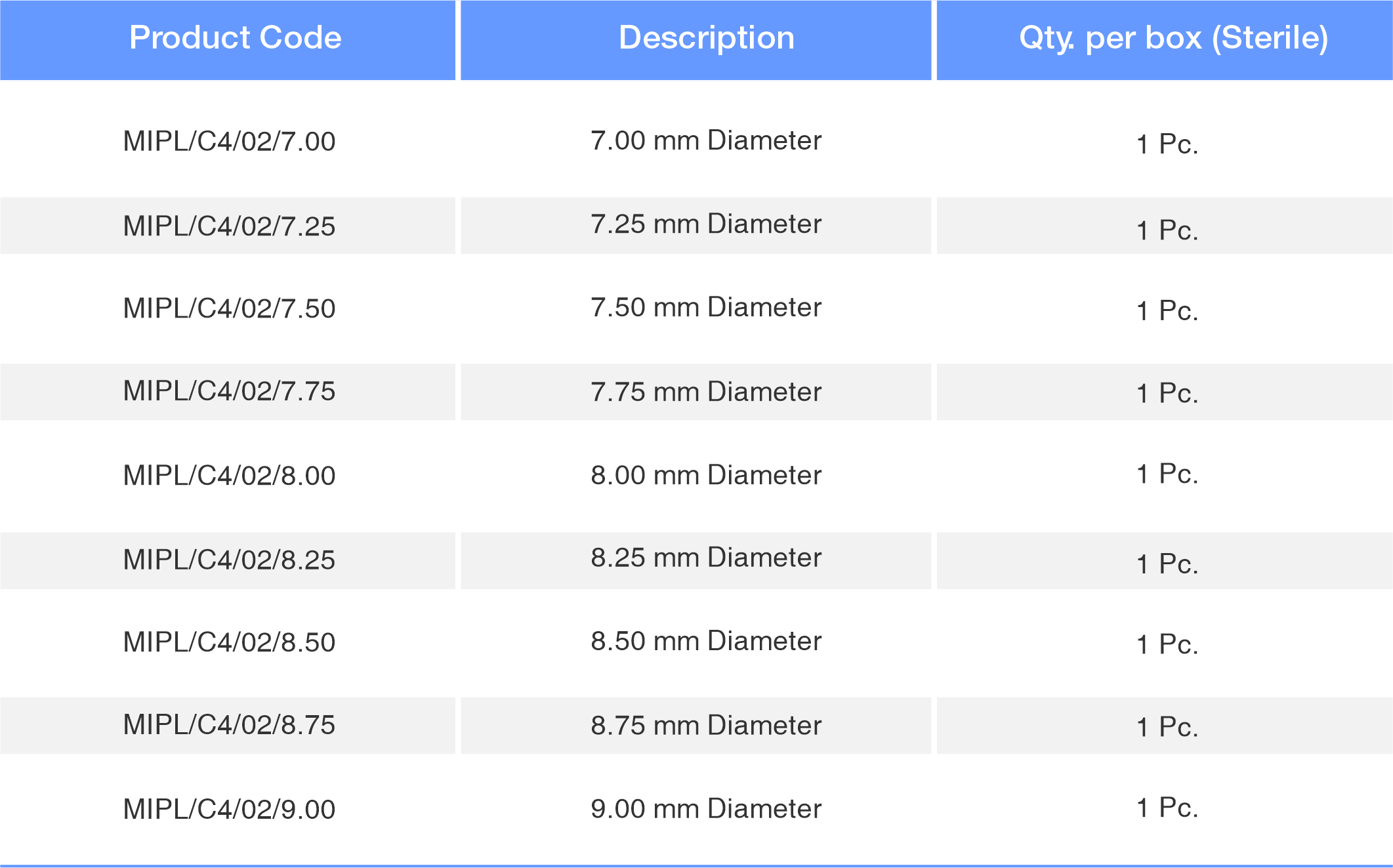

Product Code Descripton Qty. per box (Sterile)
MIPL/C4/02/7.00 7.00 mm Diameter 1 pc.
MIPL/C4/02/7.25 7.25 mm Diameter 1 pc.
MIPL/C4/02/7.50 7.50 mm Diameter 1 pc.
MIPL/C4/02/7.75 7.75 mm Diameter 1 pc.
MIPL/C4/02/8.00 8.00 mm Diameter 1 pc.

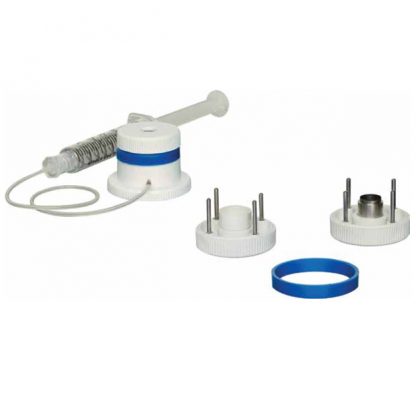

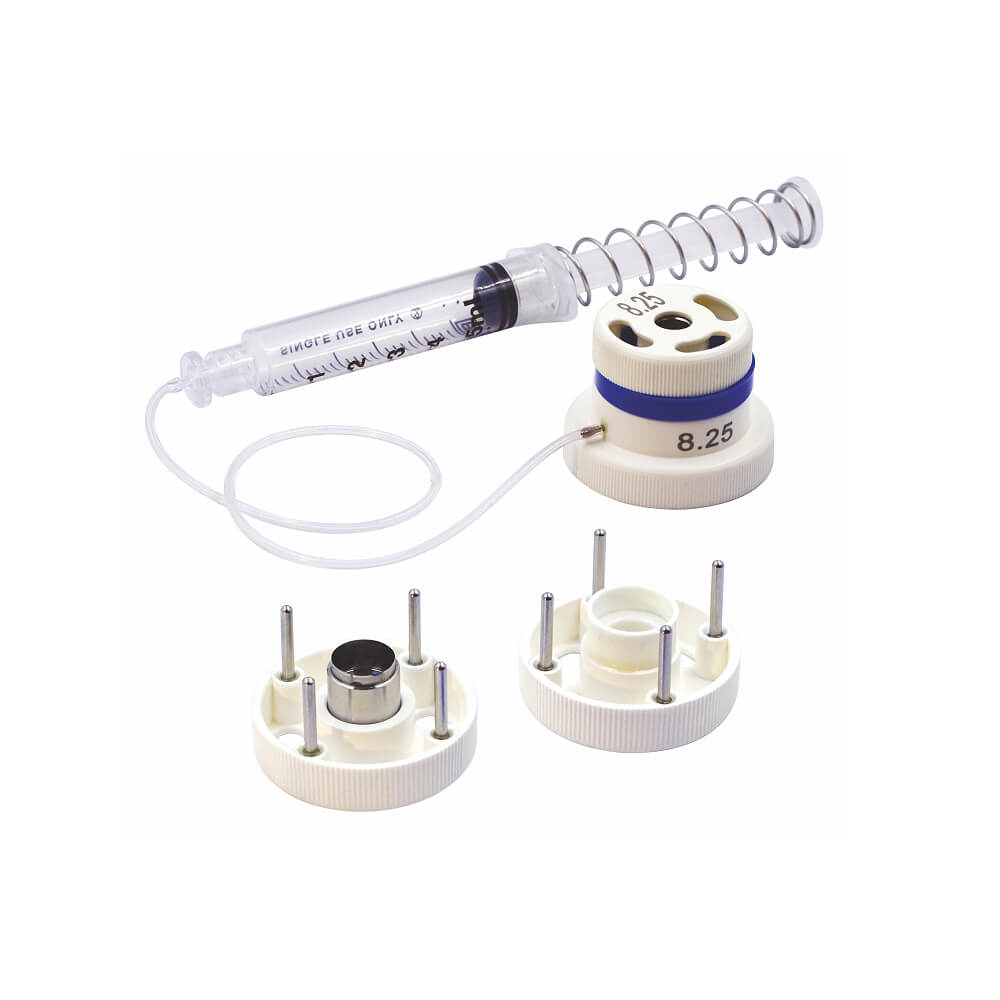

  • This device features ultra sharp trephine blade mounted in a white nylon housing with four stainless steel guide pins
  • Designed to give a consistently accurate, uniform and perpendicular cut
  • A cutting block base with four corresponding holes helps in automatic centering of the trephine blade over the donor corneal tissue
  • A spring based Syringe system (to create the vaccum) is attached to the cutting block base through a silicon tubing
  • A blue nylon spacer ring is provided to prevent trephine blade edge getting damaged during transportation and storage
  • A seating ring housing with four stainless steel guide pins is provided to make sure that the cornea is in complete contact with the cutting block while base creating a vaccum
  • See through design helps in accurate positioning
  • Individually packed and sealed in an inner blister and an outer peel open pouch
  • EO Sterile
